Description

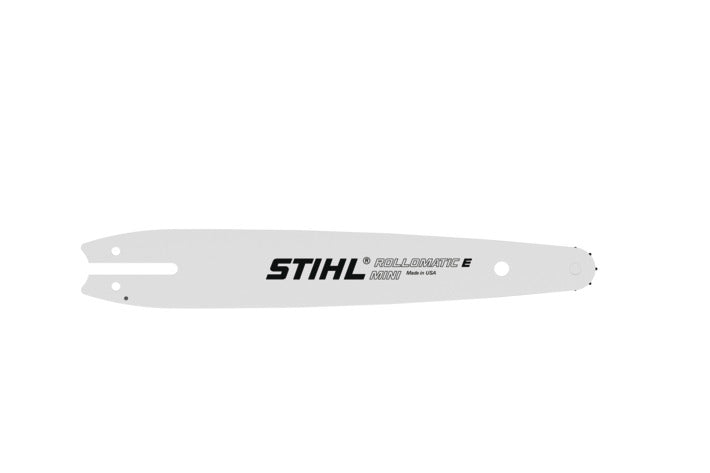

The combination of this particularly narrow guide bar with the 1/4" Picco chain, offers considerable savings in weight coupled with improved cutting performance. Like all STIHL guide bars, it is made of high-grade chrome molybdenum steel.
Suitable for models:
MSA 160, MSA 200, 150, 150T, HT100, HT101, HT130, HT131, HT56
Technical data
| Technical data | Value |
|---|---|
| Pitch Inch | 1/4 P |
| Groove width mm | 1.1 |
| Bar design | R-34-Rollomatic-1.1-1/4" P-8-grün-3 |
| Number of teeth | 8 |
| Bar type | Rollomatic,Rollomatic-Mini |
| Sprocket pitch | 6.35mm/1/4" P |
| Groove width | 1.1mm/.043" |
| Bar connection | 3.005 |
| Number of teeth on the sprocket | 8 |
| Bar length | 35 cm / 14" |
